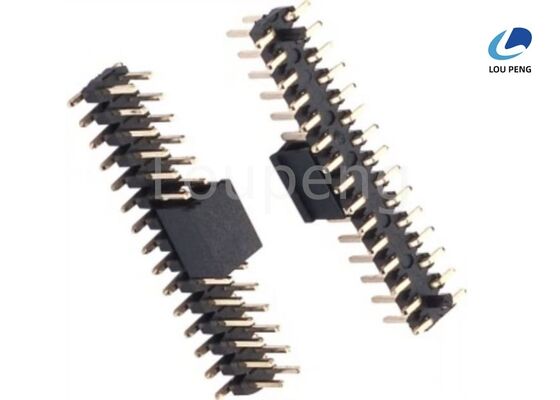

1000 V AC MIN Dielectric Strength Through Hole Pin Header SMT Vertical Single Row Double Row Three Rows for PCB Assembly

Product Description:

The Male Pin Header Connector is a versatile and essential component widely used in electronic devices and circuit boards for establishing reliable electrical connections. Designed to accommodate various configurations, this connector is available in multiple types, including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows, ensuring compatibility with a broad range of applications and design requirements. Whether you need a compact solution for tight spaces or a robust connector for complex multi-row arrangements, the Male Pin Header Connector offers the flexibility to meet your needs.

One of the standout features of this product is its exceptional electrical performance. The insulation resistance of the connector is rated at a minimum of 1000M Ohms, which guarantees excellent insulation properties to prevent electrical leakage and maintain signal integrity. This high insulation resistance is critical for applications that demand reliability and safety over extended periods, such as industrial control systems, consumer electronics, and communication devices.

In addition to insulation resistance, the contact resistance of the Male Pin Header Connector is maintained at a maximum of 20 milliohms (20M Ohms Max). Low contact resistance is vital for ensuring efficient electrical conductivity and minimal power loss across connections. This characteristic is particularly important in high-frequency or high-current applications where even small resistance values can impact overall performance. The precise engineering and high-quality materials used in the connector’s contacts help achieve this low resistance, contributing to stable and consistent connections.

Fire safety is another critical aspect of the Male Pin Header Connector. It meets the stringent UL94V-0 fire protection grade, which means the connector's insulation material is highly flame-retardant and self-extinguishing. This certification provides peace of mind for manufacturers and end-users, confirming that the product adheres to rigorous safety standards and reduces the risk of fire hazards in electronic assemblies.

The Straight Pin Header Connector variant of this product line is particularly popular due to its straightforward installation and reliable performance. As a Straight Pin Header Connector, it allows for easy vertical mounting onto printed circuit boards, simplifying assembly processes while maintaining robust connectivity. The straight pins ensure consistent alignment and contact with mating connectors, making them ideal for applications where straightforward, dependable connections are required.

Moreover, the availability of the Straight Pin Header Connector in different row configurations – single, double, and three rows – provides design engineers with the ability to customize their connector setup according to signal density and space constraints. Single-row connectors are perfect for simple interconnections, while double-row and three-row options accommodate more complex interfacing needs without increasing the connector’s footprint excessively.

Surface Mount Technology (SMT) versions of these connectors further enhance their suitability for modern electronic manufacturing processes. SMT connectors are designed for automated pick-and-place assembly, improving production efficiency and reducing labor costs. The SMT Male Pin Header Connector also provides excellent mechanical stability and electrical performance, making it a preferred choice for high-volume production runs.

Right Angle Male Pin Header Connectors offer another mounting option, allowing connectors to be positioned perpendicular to the PCB surface. This configuration is beneficial for applications where vertical space is limited or where board-to-board connections require a compact profile. The right-angle design maintains the same high standards of insulation and contact resistance, ensuring no compromise on electrical performance.

In summary, the Male Pin Header Connector series is a highly reliable, versatile, and safety-compliant solution for a wide range of electronic connectivity applications. With options including Vertical, Right Angle, SMT, and multiple row configurations, along with excellent insulation resistance, low contact resistance, and a UL94V-0 fire protection rating, these connectors are engineered to meet the demanding requirements of modern electronic designs. Whether you choose the Straight Pin Header Connector or another type, you can be confident in the performance and durability of this essential connector component.

Features:

• Product Name: PIN Header Connector
• Contact Resistance: 20 milliohms max
• Dielectric Withstanding Voltage: AC 500V
• Available Types: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Fire Protection Grade: UL94V-0
• Pin Numbers: 2 to 40 pins
• Includes Male Pin Header Connector options
• Straight Pin Header Connector available for versatile mounting

Technical Parameters:

Applications:

The LP brand Dual Row Pin Header Connector, model number LP-P072, is a high-quality electronic component originating from China and certified under ISO-9001:2000 standards. Designed for reliable and efficient electrical connections, this Male Pin Header Connector is widely used in various application occasions and scenarios within the electronics and manufacturing industries. Its robust construction features excellent insulation resistance of 5000 megaohms minimum and a low contact resistance of 20 milliohms maximum, ensuring stable signal transmission and minimal electrical loss.

One of the primary application occasions for the LP Dual Row Pin Header is in printed circuit boards (PCBs) where compact and dependable connectors are essential. The connector’s plastic height options ranging from 1.0mm to 2.54mm provide flexibility for different design requirements, making it suitable for both prototype development and mass production environments. With a supply ability of 1,000,000PCS and a minimum order quantity of 1000PCS, manufacturers can efficiently integrate these connectors into large-scale assembly lines.

This Male Pin Header Connector is ideal for use in computer hardware, telecommunications equipment, industrial control systems, and consumer electronics. Its dual row design allows for multiple pin connections in a compact form, which is especially advantageous in densely packed electronic devices. The connector’s packaging options, including reel, tube, tray, and polybag, facilitate seamless integration into automated assembly processes, reducing handling time and increasing production efficiency.

Additionally, the LP Dual Row Pin Header is well-suited for applications requiring high durability and consistent performance under variable environmental conditions. Its reliable contact resistance and insulation properties make it perfect for use in automotive electronics, medical devices, and other critical systems where connection integrity is paramount. The product is shipped in sturdy carton boxes to ensure safe delivery within 7 to 10 days, with flexible payment terms including T/T, Western Union, and L/C to accommodate diverse business needs.

Overall, the LP-P072 Dual Row Pin Header Connector combines precision engineering with practical design, offering a cost-effective solution priced at 0.0001 per unit. Its versatility and quality make it an indispensable component for engineers and manufacturers seeking dependable and efficient male pin header connectors for a wide range of electronic applications.

Customization:

Our PIN Header Connector product, branded as LP with the model number LP-P072, is manufactured in China and certified with ISO-9001:2000, ensuring high quality and reliability. We offer product customization services for various types of Through Hole Pin Headers, including Dual Row Pin Headers, with pin numbers ranging from 2 to 40 pins to suit your specific requirements.

The connectors feature excellent electrical performance with a contact resistance of 20M Ohms max, current ratings of 1.0AMP or 3.0AMP, and insulation resistance of 5000 Megaohms minimum. The insulator materials available for customization include LCP, NYLON, PA6T, and PBT+30% Glass Fiber (UL94V-0), providing durability and safety in various applications.

We support flexible packaging options such as Reel, Tube, Tray, and Polybag to accommodate your logistics needs. Our minimum order quantity is 1000PCS, with a competitive price starting at 0.0001 per unit and a supply ability of up to 1,000,000PCS. Delivery time ranges from 7 to 10 days, ensuring timely fulfillment of your orders.

Payment terms include T/T, Western Union, and L/C for your convenience. Whether you need a standard or custom Pin Header Connector, our dedicated team is ready to assist you in selecting the perfect Through Hole or Dual Row Pin Header solutions tailored to your application.

Support and Services:

Our PIN Header Connectors are designed to provide reliable and secure connections for a wide range of electronic applications. For technical support, please refer to the product datasheet and user manual available on our website, which provide detailed specifications, installation guidelines, and troubleshooting tips.

If you encounter any issues with the PIN Header Connectors, ensure that the connectors are properly aligned and securely seated to avoid connectivity problems. Verify that the mating connectors are compatible in terms of pin count, pitch, and current rating.

For custom requirements or applications outside standard specifications, our engineering team is available to assist with product customization and design advice to meet your specific needs.

We also offer comprehensive services including connector assembly, testing, and quality assurance to ensure optimal performance and durability of the PIN Header Connectors in your projects.

To maximize product lifespan and reliability, follow the recommended handling and storage procedures outlined in the product documentation.

Packing and Shipping:

Product Packaging: The PIN Header Connector is carefully packaged to ensure protection during transit. Each connector is placed in an anti-static bag to prevent damage from electrostatic discharge. Multiple units are then packed in a sturdy cardboard box with cushioning materials to avoid any physical damage. The packaging is clearly labeled with product details, quantity, and handling instructions to facilitate easy identification and safe handling.

Shipping: We offer reliable shipping options to deliver the PIN Header Connector to your location efficiently. Orders are processed promptly and shipped via trusted carriers with tracking information provided. Shipping methods include standard ground, expedited, and express delivery, depending on your preference and location. We ensure that all shipments comply with international shipping regulations and customs requirements for smooth and timely delivery.
