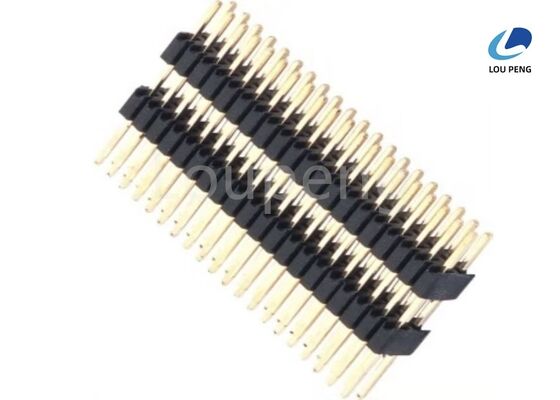

Gold Plating Pin Header Connector Offering Durable and Stable Electrical Performance for Complex Circuit Board Assemblies

Product Description:

The PIN Header Connector is an essential component widely used in electronic devices and circuit boards to establish reliable electrical connections. Designed to meet various application needs, this connector offers multiple pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, making it highly versatile for different spacing requirements between pins. Whether you are designing a compact device requiring fine pitch connectors or a standard PCB setup, these pitch variations ensure compatibility and flexibility.

One of the standout features of this PIN Header Connector is its excellent insulation resistance, rated at a minimum of 1000M Ohms. This high insulation resistance ensures minimal leakage current between adjacent pins, contributing to the overall reliability and safety of your electronic assemblies. This is particularly important in applications involving sensitive signals or high-frequency circuits, where signal integrity is paramount.

The connector supports current ratings of either 1.0AMP or 3.0AMP, catering to different power requirements. For low-power signal connections, the 1.0AMP rating is ideal, while the 3.0AMP rating can handle higher current loads without compromising performance. This makes the PIN Header Connector suitable for a wide range of applications, from simple signal transmissions to more demanding power delivery scenarios.

In terms of durability and electrical performance, the PIN Header Connector exhibits a dielectric strength of at least 1000 V AC. This high dielectric strength indicates the connector’s ability to withstand high voltage stress without breakdown, ensuring robust insulation and protection against electrical arcing. Such a characteristic is vital for connectors used in industrial, automotive, and other high-voltage environments.

The plating options available for the PIN Header Connector include gold, tin, and nickel. Gold plating provides excellent corrosion resistance and superior conductivity, making it the preferred choice for high-reliability applications where signal integrity is critical. Tin plating offers good solderability and cost-effectiveness, suitable for general-purpose use. Nickel plating enhances mechanical strength and wear resistance, ideal for connectors subjected to frequent mating and unmating cycles. These plating options allow designers to select the most appropriate finish based on their specific requirements for performance, durability, and budget.

The product line includes both Right Angle Pin Header connectors and Female Pin Header Connectors, catering to different mounting and orientation needs on PCBs. Right Angle Pin Headers are designed to mount parallel to the PCB surface, saving space and allowing for more compact designs, especially in tight enclosures. Female Pin Header Connectors provide a secure and reliable socket for male pins, facilitating easy connection and disconnection in modular electronic assemblies. The availability of Female Pin Header Connectors ensures compatibility with a wide variety of male header types, enhancing the versatility of your design.

Overall, the PIN Header Connector is a highly adaptable and reliable solution for establishing electrical connections in various electronic applications. With multiple pitch options, robust insulation resistance, flexible current ratings, high dielectric strength, and diverse plating finishes, it caters to the demanding needs of modern electronic design. Whether you require Right Angle Pin Headers for space-saving layouts or Female Pin Header Connectors for modular connections, this product line offers the quality and performance necessary to ensure long-lasting and dependable electrical interconnections.

Features:

• Product Name: PIN Header Connector
• Fire Protection Grade: UL94V-0
• Dielectric Withstanding Voltage: AC 500V
• Operation Temperature Range: -65°C to +125°C
• Dielectric Strength: 1000 V AC Minimum
• Contact Material: Copper Alloys
• Available Types: Female Pin Header Connector, Through Hole Pin Header, Right Angle Pin Header

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P075, is a versatile and reliable component widely used in various electronic applications. Manufactured in China and certified with ISO-9001:2000, this connector guarantees quality and durability, making it an excellent choice for both industrial and consumer electronics. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, it offers great value for bulk purchases, supported by flexible payment terms including T/T, Western Union, and L/C.

This connector is available in multiple packaging options such as Reel, Tube, Tray, and Polybag, ensuring convenient handling and storage. Its impressive supply ability of 1,000,000PCS and a delivery time of 7 to 10 days make it suitable for large-scale manufacturing and timely project completion. The LP-P075 is designed as a Male PIN Header Connector with a straight pin layout, ideal for through hole mounting on printed circuit boards (PCBs). It ensures a secure and reliable connection, complementing Female Pin Header Connectors to complete various electronic assemblies.

In terms of durability and performance, the LP-P075 PIN Header Connector can withstand up to 100 cycles of mating and unmating, providing long-lasting service in demanding environments. It operates efficiently within a broad temperature range from -65°C to +125°C, making it suitable for use in harsh conditions including automotive, industrial controls, and aerospace applications. Additionally, it can endure processing temperatures up to 260°C for 10 seconds, which is essential for soldering processes during PCB assembly.

The connector also meets the UL94V-0 fire protection grade, ensuring enhanced safety by resisting ignition and flame spread, a critical factor for electronic devices requiring stringent fire safety standards. Its through hole pin header design facilitates easy soldering and robust mechanical stability on the PCB, making it a preferred choice in scenarios where reliable electrical connections are paramount.

Common application occasions for the LP-P075 PIN Header Connector include computer motherboards, communication equipment, consumer electronics, industrial machinery, and automotive electronic systems. It is particularly suitable for scenarios requiring compact, efficient, and high-performance connectors, such as embedded systems, IoT devices, and robotics. The straight pin and through hole design allow for easy integration with Female Pin Header Connectors, enabling flexible configurations in modular electronic designs.

In summary, the LP-P075 PIN Header Connector by LP is a high-quality, durable, and versatile component engineered for a wide range of electronic applications. Its robust specifications, efficient supply chain, and flexible packaging options make it an ideal solution for manufacturers seeking reliable and cost-effective connectors for their projects.

Customization:

Introducing the LP-P075 PIN Header Connector, a high-quality product from LP, proudly made in China and certified with ISO-9001:2000. This Dual Row Pin Header is available with 2 to 40 pins, designed to meet diverse application needs with exceptional durability of 100 cycles and a dielectric strength of 1000 V AC minimum.

Our Straight Pin Header Connector offers flexibility in plastics height options, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm, ensuring compatibility with various PCB designs. The Male Pin Header Connector is packaged carefully in reel, tube, tray, or polybag, and then securely packed in carton boxes for safe delivery.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, LP guarantees a supply ability of up to 1,000,000PCS. Delivery time is prompt, within 7 to 10 days, and payment terms include T/T, Western Union, and L/C, making transactions smooth and convenient for our customers.

Choose LP-P075 PIN Header Connectors for reliable performance, versatile packaging options, and excellent value in Dual Row Pin Header, Straight Pin Header Connector, and Male Pin Header Connector solutions.

Support and Services:

Our PIN Header Connector product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including datasheets, application notes, and installation guides to assist in proper usage and integration.

Our technical support team is available to help with product selection, troubleshooting, and customization inquiries. We offer design assistance to help tailor the connector solutions to meet specific project requirements.

Additionally, we provide testing and validation services to ensure that the PIN Header Connectors comply with industry standards and customer specifications. Our commitment to quality assurance includes product inspection, reliability testing, and continuous improvement based on customer feedback.

For after-sales support, we offer warranty services and replacement policies to address any manufacturing defects or performance issues. Our goal is to provide end-to-end support throughout the product lifecycle to help you achieve reliable and efficient connectivity solutions.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The bags are then securely packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical damage.

For shipping, we offer multiple options including standard, expedited, and priority services to meet your delivery needs. All orders are processed promptly and shipped with reliable carriers to ensure timely and safe delivery. Tracking information will be provided once your order has been dispatched.

We take great care in handling and packaging our PIN Header Connectors to guarantee that you receive them in perfect condition, ready for immediate use in your projects.
