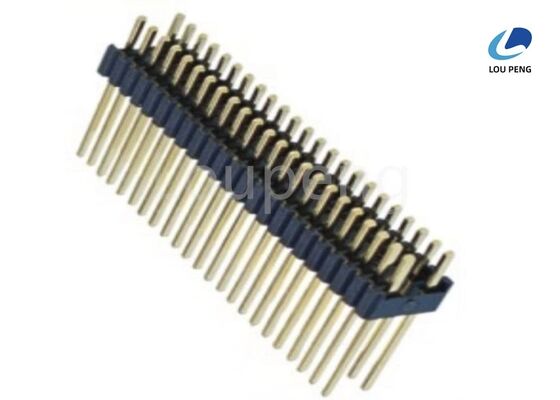

Copper Alloys Contact Pin Header Connector Utilizing Phosphor Bronze Brass Pin Material and 20 Milliohms Max Contact Resistance for Signal Connectivity

Product Description:

The PIN Header Connector is a versatile and reliable component designed to meet the demanding needs of modern electronic applications. Available with a range of pin counts from 2 to 40 pins, this connector provides flexibility for a variety of circuit configurations and designs. Whether you require a compact connection for a small project or a more extensive interface for complex systems, the PIN Header Connector accommodates your requirements with ease.

Constructed with high-quality materials, the PIN Header Connector features pins made from phosphor bronze or brass, both of which offer excellent electrical conductivity and mechanical strength. These materials ensure a consistent and reliable connection, minimizing signal loss and maintaining the integrity of your electronic circuits over time. The choice between phosphor bronze and brass allows for customization based on specific application needs, including considerations for durability, corrosion resistance, and cost-effectiveness.

One of the key highlights of this product is its impressive insulation resistance, rated at a minimum of 5000 megaohms. This high level of insulation resistance is critical for preventing unwanted current leakage and ensuring safe operation, especially in sensitive electronic environments. It guarantees that the connector maintains excellent electrical isolation between pins, thereby enhancing overall system performance and reliability.

The PIN Header Connector is available in two current ratings: 1.0 AMP and 3.0 AMP. This range allows you to select the appropriate connector based on the current demands of your application, ensuring efficient power delivery without the risk of overheating or electrical failure. Whether your project requires low current or higher current capacity, this connector provides the necessary specifications to support your design.

Designed with safety in mind, the connector meets the UL94V-0 fire protection grade. This certification indicates that the materials used in the connector exhibit excellent flame-retardant properties, significantly reducing the risk of fire in case of electrical faults or overheating. This fire protection grade is an essential feature for applications where safety and compliance with industry standards are paramount.

This product line includes various types of connectors such as Single Row Pin Connectors, Straight Pin Header Connectors, and Female Pin Header Connectors, making it a comprehensive solution for your connection needs. The Single Row Pin Connector design ensures a streamlined and space-efficient layout, ideal for applications with limited space. The Straight Pin Header Connector offers straightforward and easy-to-use connections, simplifying assembly and maintenance processes. Additionally, the Female Pin Header Connector provides a secure and reliable mating interface for male pins, ensuring a firm and stable connection in your electronic assemblies.

In summary, the PIN Header Connector is an essential component for electronic engineers and designers seeking a dependable, customizable, and safe connection solution. Its wide range of pin counts, superior insulation resistance, suitable current ratings, premium pin materials, and compliance with stringent fire protection standards make it a top choice in the industry. Whether you are working on prototype development, production-level electronics, or specialized equipment, this connector series offers the quality and performance needed to achieve optimal results.

Features:

• Product Name: PIN Header Connector
• Available in 2 to 40 Pins
• Insulation Resistance: 1000M Ohms Minimum
• Retention Force: 700g Minimum
• Contact Resistance: 20M Ohms Maximum
• Pin Material: Phosphor Bronze / Brass
• Suitable for Surface Mount Pin Header applications
• Compatible with PCB Mount Pin Header designs
• Available in Through Hole Pin Header configuration

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P077, is a highly reliable and versatile component originating from China. Certified under ISO-9001:2000, this connector is designed to meet stringent quality standards, ensuring optimal performance in various electronic applications. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, it is an excellent choice for manufacturers and engineers seeking cost-effective yet durable connectivity solutions.

This product is well-suited for a wide range of application occasions and scenarios due to its robust features. The Surface Mount Pin Header design allows for easy and secure mounting onto printed circuit boards (PCBs), making it ideal for compact and high-density electronic assemblies. Its Dual Row Pin Header configuration provides increased pin density and reliable connections, which is essential in complex circuit designs requiring multiple signal or power lines.

The Male Pin Header Connector is commonly used in consumer electronics, industrial equipment, telecommunications, and automotive electronics where secure and stable electrical connections are critical. Its durability, rated for 100 cycles, ensures longevity even in environments with frequent mating and unmating operations. Additionally, the connector's dielectric strength of 1000 V AC minimum and insulation resistance of 5000 megaohms minimum guarantee excellent electrical insulation and prevent short circuits, which is vital in sensitive electronic systems.

Packaging options such as reel, tube, tray, and polybag provide flexibility for automated assembly processes and efficient inventory management. The connectors are packed in carton boxes for added protection during shipping and storage. With a supply ability of 1,000,000PCS and a delivery time of 7 to 10 days, LP can reliably support large-scale production demands.

Payment terms including T/T, Western Union, and L/C offer convenient and secure transaction methods for global customers. Whether you are working on prototyping or mass production, the LP-P077 PIN Header Connector is an excellent choice for ensuring dependable electrical connections in various electronic devices and systems.

Customization:

Our LP brand Male Pin Header Connector, model number LP-P077, is proudly made in China and certified with ISO-9001:2000, ensuring high-quality standards for your electronic applications.

We offer customizable Pin Header Connector solutions with a minimum order quantity of 1000PCS and competitive pricing starting at $0.0001 per piece. Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics needs.

The delivery time for our products is typically 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C. With a strong supply ability of 1,000,000PCS, we can meet large-volume demands efficiently.

Our Female Pin Header Connector and Male Pin Header Connector feature plastic heights of 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm, accommodating various design requirements. The pitch options include 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, providing versatility for different circuit board layouts.

These connectors have a current rating of either 1.0AMP or 3.0AMP, with durability tested up to 100 cycles to ensure reliability and long-lasting performance. The pin materials are available in Phosphor Bronze or Brass, offering excellent conductivity and corrosion resistance.

Choose our LP-P077 Pin Header Connector for customized, dependable Male and Female Pin Header Connector solutions tailored to your specific project needs.

Support and Services:

Our PIN Header Connector product is designed to provide reliable and efficient electrical connections in a variety of applications. For technical support, we offer detailed product documentation, including datasheets, assembly guides, and application notes to assist you in selecting and using the connector correctly.

If you encounter any issues or require assistance with installation, compatibility, or performance optimization, our technical support team is available to provide expert guidance. We also offer custom solutions and modifications to meet specific project requirements.

Additionally, we provide after-sales services such as warranty coverage, replacement parts, and repair options to ensure the longevity and functionality of your PIN Header Connectors. Regular updates and improvements are communicated through our support channels to keep you informed about the latest enhancements.

For best results, please refer to the recommended handling and storage instructions included in the product documentation, and ensure proper mating and alignment during installation to prevent damage and ensure optimal electrical contact.

Packing and Shipping:

Our PIN Header Connectors are carefully packaged to ensure maximum protection during transit. Each connector is securely placed in anti-static packaging to prevent damage from electrostatic discharge. The packages are then cushioned with bubble wrap or foam inserts to avoid physical damage.

For shipping, we use reliable carriers to guarantee timely delivery. Each shipment is tracked with a unique tracking number, allowing customers to monitor their order status. We offer various shipping options to meet different needs, including standard, expedited, and express shipping.

All products are inspected for quality before packaging to ensure that you receive only the highest quality PIN Header Connectors. Bulk orders are packed in sturdy boxes with clear labeling for easy identification and handling.

Our packaging and shipping processes are designed to provide a seamless and secure experience from our warehouse to your doorstep.
