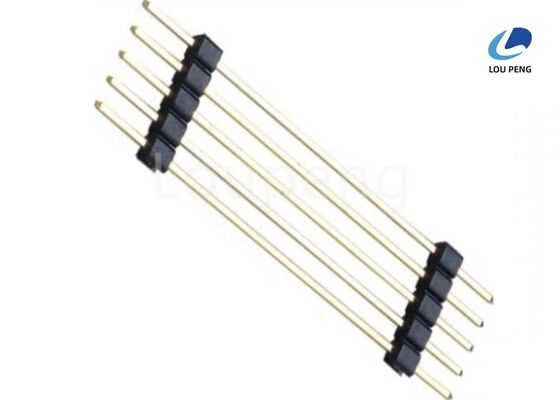

Insulation Resistance 5000 Megaohms Min Single Row Pin Connector Featuring Brass Pin Material and Precision Engineering for Connections

Product Description:

The PIN Header Connector is a versatile and reliable component designed to meet the demanding requirements of modern electronic applications. Available in configurations ranging from 2 to 40 pins, this connector offers flexibility for various circuit designs and interconnection needs. Whether you require a simple single-row arrangement or a more complex triple-row setup, this product provides multiple options including Vertical, Right Angle, Surface Mount Technology (SMT), Single Row, Double Row, and Three Rows types to suit diverse mounting and space constraints.

One of the standout features of this PIN Header Connector is its exceptional insulation resistance, rated at a minimum of 5000 megaohms. This high insulation resistance ensures minimal leakage current and superior electrical isolation between pins, enhancing the overall reliability and performance of your electronic assemblies. The product also boasts a dielectric strength of at least 1000 V AC, providing robust protection against electrical breakdown and enabling safe operation in high-voltage environments.

The pins themselves are crafted from high-quality materials such as phosphor bronze and brass, selected for their excellent electrical conductivity, mechanical strength, and corrosion resistance. Phosphor bronze offers enhanced spring properties and durability, making it ideal for connectors that require frequent mating and unmating cycles. Brass, on the other hand, provides cost-effective conductivity and strength, making it suitable for a wide range of applications. Both materials are meticulously plated to ensure optimal solderability and long-term performance.

This connector product line includes Through Hole Pin Headers, which are designed to be mounted through holes on a printed circuit board (PCB), providing strong mechanical bonds and reliable electrical connections. Through Hole Pin Headers are well-suited for applications where durability and robust assembly are critical. Additionally, the Surface Mount Pin Header variants cater to modern manufacturing processes, allowing efficient and automated PCB assembly with smaller footprints and improved signal integrity.

For applications requiring more complex interconnections, the Dual Row Pin Header options offer increased pin density while maintaining a compact form factor. These dual-row configurations are ideal for reducing PCB real estate while providing multiple signal paths, power connections, or grounding options. Furthermore, the availability of three-row configurations extends the capability to handle even more complex circuitry without compromising the ease of installation or reliability.

Designed to accommodate a wide range of electronic devices and systems, the PIN Header Connector is highly adaptable to various industries including consumer electronics, automotive, telecommunications, industrial equipment, and more. Its robust construction, combined with flexible mounting styles such as Vertical and Right Angle, ensures seamless integration into different PCB layouts and enclosure designs. Whether you are designing a new product or upgrading an existing system, these connectors provide a dependable and efficient solution.

In summary, the PIN Header Connector product offers an excellent combination of high insulation resistance, superior dielectric strength, and premium pin materials, along with versatile configurations that include Through Hole Pin Header, Dual Row Pin Header, and Surface Mount Pin Header options. This makes it a preferred choice for engineers seeking reliable, durable, and adaptable connectors that can meet stringent electrical and mechanical specifications. With its comprehensive range of pin counts and mounting types, this product line is well-equipped to support the evolving needs of advanced electronic assemblies and ensure long-lasting performance in demanding applications.

Features:

• Product Name: PIN Header Connector
• Pin Numbers: 2 To 40 Pins
• Pitch Options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Types Available: Vertical, Right Angle, SMT, Single Row, Double Row, Three Rows
• Dielectric Strength: 1000 V AC Minimum
• Fire Protection Grade: UL94V-0
• Includes Surface Mount Pin Header configurations for easy PCB integration
• Suitable as a Surface Mount Pin Header and PCB Mount Pin Header for versatile applications

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P074, is a highly reliable and versatile component designed for various electronic applications. Manufactured in China and certified with ISO-9001:2000, this connector guarantees high quality and consistent performance. Its excellent insulation resistance of 5000 megaohms minimum and contact resistance of 20 milliohms maximum ensure stable electrical connections, making it suitable for critical electronic assemblies.

This pin header connector is available in multiple pitch sizes including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, allowing it to accommodate a wide range of PCB designs and configurations. Its fire protection grade UL94V-0 adds safety in environments where flame retardancy is essential. The connector’s durability of 100 cycles ensures that it can withstand repeated mating and unmating without compromising performance, which is crucial in prototyping and maintenance scenarios.

The LP-P074 model is offered in various packaging options such as reel, tube, tray, and polybag, providing flexibility for different production and assembly line requirements. With a minimum order quantity of 1000PCS and an impressive supply ability of 1,000,000PCS, it caters efficiently to both small-scale and large-scale manufacturing needs. The competitive price of 0.0001 per piece and a delivery time of 7 to 10 days make it a cost-effective solution for businesses looking to optimize their inventory and production schedules.

Payment terms including T/T, Western Union, and L/C offer convenience and security for international buyers. This PIN Header Connector is ideal for various application occasions and scenarios such as industrial control systems, consumer electronics, communication equipment, and automotive electronics. It is especially suitable for use as Dual Row Pin Header, PCB Mount Pin Header, and Right Angle Pin Header in printed circuit boards where reliable and compact connections are required.

Engineers and designers commonly choose the LP-P074 for its adaptability in connector layouts, enabling efficient and secure connections between different PCB modules. The right angle pin header variant is particularly useful in scenarios where space constraints exist, allowing for horizontal board-to-board connections. Similarly, the dual row pin header format maximizes connection density in compact electronic devices.

In summary, the LP-P074 PIN Header Connector by LP is an excellent choice for a wide range of electronic applications requiring dependable, high-quality connectors. Its superior electrical properties, multiple pitch options, and various mounting styles provide flexibility and performance that meet the demanding needs of modern electronic manufacturing.

Customization:

LP presents the LP-P074 model, a premium Through Hole Pin Header designed with precision and durability. As a trusted Male Pin Header Connector, it features a Single Row Pin Connector configuration, ideal for various electronic applications.

Manufactured in China under ISO-9001:2000 certification, this product guarantees quality and reliability. With a minimum order quantity of 1000PCS and a highly competitive price of 0.0001 per unit, it is perfect for both small and large-scale production needs.

Our LP-P074 pin header connector offers excellent electrical performance, including a maximum contact resistance of 20M Ohms, retention force of 700g minimum, and durability rated for 100 cycles. The connectors are plated with Gold, Tin, or Nickel, ensuring superior conductivity and corrosion resistance.

Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics preferences. Delivery is prompt within 7 to 10 days, supported by flexible payment terms such as T/T, Western Union, and L/C. With a supply ability of 1,000,000PCS, we ensure consistent availability to meet your demands.

Designed for easy processing, the pin header connectors withstand a processing temperature of up to 260℃ for 10 seconds, making them suitable for various soldering and assembly processes.

Choose LP's LP-P074 Through Hole Pin Header for a reliable, efficient, and customizable Male Pin Header Connector solution with Single Row Pins tailored to your specific requirements.

Support and Services:

Our PIN Header Connectors are designed to provide reliable and efficient connections in a wide range of electronic applications. For technical support, please ensure that you have the product specifications and application details ready to facilitate accurate assistance.

We offer comprehensive services including product selection guidance, custom configuration options, and troubleshooting support to ensure optimal performance of your PIN Header Connector.

Our technical team is equipped to assist with installation instructions, compatibility questions, and best practices for soldering and mounting to help you achieve secure and durable connections.

For detailed product datasheets, application notes, and CAD models, please refer to our online resources. We are committed to providing prompt and professional support to meet your project requirements.
