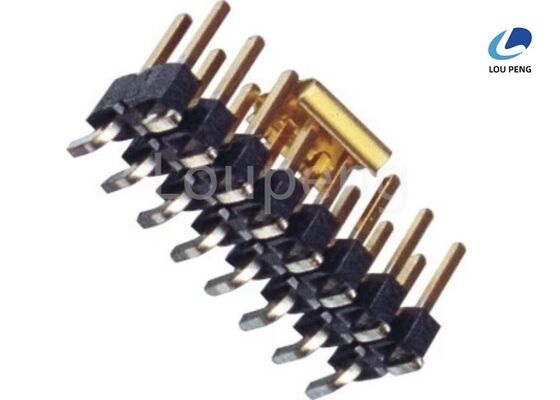

Double Row PIN Header Connector Vertical SMT Insulation Resistance 5000 Megaohms Min Durability 100 Cycles PCB Connector

Product Description:

The PIN Header Connector is a versatile and reliable component widely used in electronic assemblies to establish secure and stable electrical connections between printed circuit boards (PCBs) and other electronic devices. Designed with precision and durability in mind, this connector is available in various configurations, including Right Angle Pin Header, Surface Mount Pin Header, and Straight Pin Header Connector, making it an ideal choice for diverse applications in industries such as telecommunications, automotive, consumer electronics, and industrial automation.

One of the standout features of this PIN Header Connector is its excellent fire protection grade, certified as UL94V-0. This rating ensures that the connector's housing material is highly flame retardant and self-extinguishing, thereby significantly enhancing safety by reducing the risk of fire hazards in electronic devices. This characteristic is crucial for applications where safety and compliance with stringent regulatory standards are paramount.

In terms of electrical performance, the connector boasts an impressive insulation resistance of 5000 megaohms minimum, ensuring minimal leakage current and superior electrical isolation between the pins. This high insulation resistance contributes to the overall reliability and longevity of electronic circuits by preventing short circuits and signal degradation. Additionally, the connector features an insulation resistance rating of 1000 megaohms minimum under specific conditions, reinforcing its capability to maintain electrical integrity in demanding environments.

The PIN Header Connector is also engineered to withstand high processing temperatures, with a processing temperature tolerance of up to 260℃ for 10 seconds. This attribute makes it compatible with modern soldering techniques, including reflow soldering and wave soldering, without compromising its structural integrity or electrical performance. Such thermal resilience is essential for maintaining consistent quality during manufacturing and ensuring the connector’s durability throughout the product lifecycle.

Dielectric strength is another critical parameter where this connector excels, with a minimum rating of 1000 V AC. This high dielectric strength ensures that the connector can withstand substantial voltage stress without electrical breakdown, making it suitable for applications that require reliable insulation under high voltage conditions. This feature is particularly important in industrial and automotive environments where electrical surges and fluctuations are common.

The availability of the PIN Header Connector in multiple configurations—Right Angle Pin Header, Surface Mount Pin Header, and Straight Pin Header Connector—provides engineers and designers with the flexibility to select the most suitable style for their specific PCB layout and assembly requirements. The Right Angle Pin Header is ideal for space-saving designs and board-to-board connections where perpendicular orientation is needed. The Surface Mount Pin Header facilitates automated assembly processes and is perfect for high-density PCB designs. Meanwhile, the Straight Pin Header Connector offers a classic, straightforward approach for vertical connections, ensuring strong mechanical stability and reliable electrical contact.

Overall, the PIN Header Connector combines robust safety features, excellent electrical properties, and versatile mounting options to deliver a high-quality interconnection solution. Its UL94V-0 fire protection grade, superior insulation resistance, high processing temperature tolerance, and strong dielectric strength make it an outstanding choice for engineers seeking dependable connectors that meet rigorous industry standards. Whether used as a Right Angle Pin Header, Surface Mount Pin Header, or Straight Pin Header Connector, this product ensures optimal performance and long-term reliability in a wide range of electronic applications.

Features:

• Product Name: PIN Header Connector
• Type: Male Pin Header Connector
• Configuration: Straight Pin Header Connector
• Number of Pins: 2 to 40 pins available
• Fire Protection Grade: UL94V-0
• Insulation Resistance: 5000 megaohms minimum
• Contact Resistance: 20 milliohms maximum
• Plastic Height Options: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 2.54mm
• Reliable and durable Pin Header Connector for various electronic applications

Technical Parameters:

Applications:

The LP-P073 Straight Pin Header Connector, manufactured by LP in China, is an essential component widely used in various electronic applications. Certified under ISO-9001:2000, this high-quality connector is designed to meet rigorous industry standards, ensuring reliability and performance. With a pin count ranging from 2 to 40 pins, it offers flexibility for diverse circuit board configurations, making it ideal for both simple and complex PCB connections.

One of the most common application occasions for the LP-P073 is in PCB assembly lines where precision and durability are paramount. As a PCB Mount Pin Header, it facilitates secure and efficient connections between printed circuit boards and other components. This product is especially favored in scenarios where compact and reliable electrical connections are necessary, such as in consumer electronics, industrial control systems, and communication devices. Its pin material, made from phosphor bronze or brass with copper alloy contacts, ensures excellent conductivity and corrosion resistance, which is critical for maintaining signal integrity in high-performance electronic devices.

The Surface Mount Pin Header variant of the LP-P073 is extensively used in automated manufacturing environments where surface mount technology (SMT) is employed. This allows for fast and accurate placement on PCBs, reducing production time and cost. The connector’s current rating options of 1.0AMP or 3.0AMP make it suitable for a wide range of electrical loads, from low-power signal transmission to moderate power delivery applications.

Typical scenarios for deploying the LP Straight Pin Header Connector include the assembly of computer motherboards, automotive electronic systems, home appliances, and telecommunications equipment. Its packaging options—reel, tube, tray, or polybag—offer convenience for bulk handling and storage, supporting a minimum order quantity of 1000PCS and a supply ability of up to 1,000,000PCS. With a competitive price of 0.0001 per piece and a delivery time of 7 to 10 days, it is an economical and efficient choice for manufacturers worldwide.

Furthermore, flexible payment terms such as T/T, Western Union, and L/C make the procurement process smooth for international clients. Overall, the LP-P073 Straight Pin Header Connector stands out as a versatile and dependable component that caters to a broad spectrum of electronic assembly occasions and scenarios, ensuring seamless integration and long-term operational stability in various industries.

Customization:

LP offers high-quality PIN Header Connectors under the model number LP-P073, originating from China and certified with ISO-9001:2000. Our Through Hole Pin Header is designed to meet demanding applications with a contact resistance of 20 milliohms max and supports a number of pins ranging from 2 to 40 pins.

The Male Pin Header Connector is available with various plastics heights of 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 2.54mm, ensuring compatibility with diverse design requirements. It operates reliably within a temperature range of -65°C to +125°C and features a fire protection grade of UL94V-0, ensuring safety and durability.

We provide flexible packaging options including Reel, Tube, Tray, and Polybag, with a minimum order quantity of 1000PCS. Our Single Row Pin Connector can be delivered within 7 to 10 days, backed by a supply ability of 1,000,000PCS to meet large-scale production needs.

Pricing starts at 0.0001 per unit, and we accept payment terms including T/T, Western Union, and L/C. Choose LP's PIN Header Connector for reliable, customizable solutions tailored to your electronic connector requirements.

Support and Services:

Our PIN Header Connector product is designed to deliver reliable and efficient connections for a wide range of electronic applications. We provide comprehensive technical support to ensure seamless integration and optimal performance of the connectors in your projects.

Technical support includes assistance with product selection, specifications, compatibility, and application guidance to help you choose the right PIN Header Connector for your needs. Our team is available to address any technical questions or challenges you may encounter during design, assembly, or testing phases.

We offer detailed datasheets, application notes, and installation guides to facilitate proper usage and maximize product lifespan. Additionally, we provide troubleshooting support to help identify and resolve any issues related to connectivity, mounting, or durability.

For customers requiring customization, we offer tailored solutions including variations in pin count, pitch, plating, and packaging to meet specific project requirements.

Our commitment to quality is backed by rigorous testing and compliance with industry standards to ensure that every PIN Header Connector performs reliably under various environmental and electrical conditions.

We also provide after-sales services including warranty support and replacement options to maintain your confidence in our products throughout their lifecycle.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent damage from electrostatic discharge. The bags are then securely packed in sturdy cardboard boxes with adequate cushioning materials to avoid any physical damage.

For shipping, we offer multiple options including standard, expedited, and overnight delivery to meet your needs. All shipments are tracked, and a tracking number will be provided once the order is dispatched. We ensure timely delivery and handle all packages with care to maintain the quality and integrity of the PIN Header Connector.
