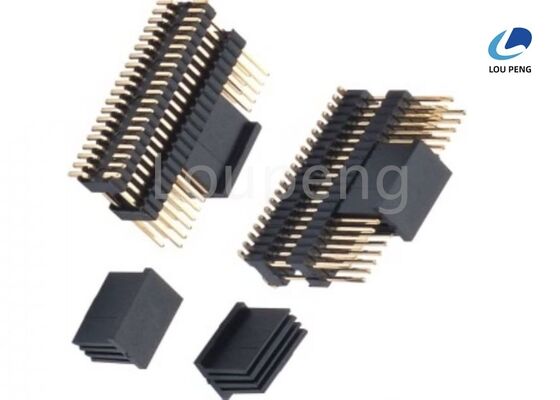

Retention Force 700g Min Pin Header Connector Vertical Right Angle SMT Single Row Double Row Three Rows Durability 100 Cycles

Product Description:

The Pin Header Connector is a versatile and reliable component widely used in electronic and electrical applications. Designed to ensure secure and stable connections, this connector is available in various configurations, including Single Row Pin Connector and Dual Row Pin Header options, catering to diverse design requirements. Its robust construction and high-quality materials make it an essential component in circuit boards, telecommunications equipment, industrial machinery, and consumer electronics.

One of the standout features of this Pin Header Connector is its impressive retention force, rated at a minimum of 700 grams. This retention force guarantees a firm grip between the connector and its mating components, minimizing the risk of accidental disconnections and ensuring consistent electrical performance. This attribute is particularly important in environments subject to vibrations or mechanical stresses, where maintaining a reliable connection is critical.

The insulator material used in this Pin Header Connector is carefully selected to provide excellent electrical insulation and mechanical strength. Options include LCP (Liquid Crystal Polymer), Nylon, PA6T (Polyamide 6T), and PBT (Polybutylene Terephthalate) reinforced with 30% glass fiber, all complying with the UL94V-0 flammability standard. These materials contribute to the connector's durability, heat resistance, and safety, making it suitable for use in demanding applications where flame retardancy and thermal stability are required.

In terms of electrical performance, the Pin Header Connector boasts an insulation resistance of at least 1000 megaohms. This high insulation resistance ensures minimal leakage current and excellent isolation between pins, which is vital for maintaining signal integrity and preventing short circuits. The superior insulation properties allow the connector to perform reliably even in high-voltage or sensitive electronic environments.

Durability is another key aspect of this Pin Header Connector. It is rated for a minimum of 100 mating cycles, ensuring a long service life even with repeated insertion and removal. This durability makes it ideal for applications where connectors need to be frequently connected and disconnected without compromising performance or mechanical integrity.

The connector is available in multiple plastic height options, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and the standard 2.54mm pitch. These height variations provide designers with flexibility in customizing the connector to fit specific spatial constraints and mounting requirements on the PCB. Whether a low-profile design or a standard pitch is needed, this Pin Header Connector can accommodate various design specifications.

Whether you require a Single Row Pin Connector for simpler connection needs or a Dual Row Pin Header for more complex configurations, this product offers reliable performance, ease of use, and adaptability. Its combination of strong retention force, high insulation resistance, flame-retardant materials, and durable construction makes it a trusted choice for engineers and manufacturers aiming for quality and longevity in their electronic assemblies.

In summary, this Pin Header Connector stands out as a high-performance component designed to meet the rigorous demands of modern electronic applications. Its well-balanced attributes, including a minimum retention force of 700 grams, insulation resistance of 1000M ohms or more, UL94V-0 rated insulator materials, and durability of 100 cycles, make it a dependable solution for maintaining secure and efficient electrical connections. With multiple plastic height options and configurations such as Single Row Pin Connector and Dual Row Pin Header, it provides the versatility necessary for a wide range of uses, from prototyping to mass production. Choosing this Pin Header Connector ensures a professional-grade connection that supports both reliability and safety in your electronic projects.

Features:

• Product Name: PIN Header Connector
• Available pitch options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm
• Pin Material: Phosphor Bronze and Brass
• Durability: Up to 100 cycles
• Processing Temperature: 260℃ for 10 seconds
• Contact Material: Copper alloys
• Type: Straight Pin Header Connector
• Mounting Style: Through Hole Pin Header
• Application: PCB Mount Pin Header

Technical Parameters:

Applications:

The LP brand PIN Header Connector, model number LP-P071, manufactured in China and certified with ISO-9001:2000, is an essential component widely used in various electronic applications. Designed with durability in mind, this connector withstands up to 100 cycles, ensuring reliable performance in demanding environments. Its fire protection grade UL94V-0 enhances safety by providing excellent flame retardancy, making it suitable for industrial and consumer electronics alike.

This product features pin numbers ranging from 2 to 40 pins, catering to a broad spectrum of connection needs. It supports a current rating of either 1.0AMP or 3.0AMP and boasts an impressive insulation resistance of 5000 megaohms minimum, providing stable and secure electrical connections. The LP-P071 is available in multiple packaging options such as reel, tube, tray, and polybag, allowing for flexible handling and storage to meet different production requirements.

One of the most common application scenarios for the LP-P071 PIN Header Connector is its use as a PCB Mount Pin Header in various electronic devices and printed circuit boards. Its precise pin layout and robust design make it ideal for establishing reliable connections between circuit boards and other components. The connector’s versatility extends to configurations like the Dual Row Pin Header, which offers increased pin density and enhanced connection stability, crucial for complex circuitry in industrial automation, telecommunications, and consumer electronics.

Additionally, the Female Pin Header Connector variant of this product is frequently employed in modular electronic systems where easy plugging and unplugging of components are required. This is particularly useful in prototyping, testing, and repair scenarios, where flexibility and quick disassembly are vital. The connector’s ability to maintain high insulation resistance and current ratings ensures that it performs reliably even in environments with electrical noise and interference.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, the LP-P071 is an economical choice for manufacturers requiring large volumes. The efficient delivery time of 7 to 10 days and multiple payment options including T/T, Western Union, and L/C, combined with a supply ability of up to 1,000,000PCS, further highlight its suitability for mass production and large-scale projects.

Customization:

Introducing the LP-P071 PIN Header Connector by LP, proudly made in China and certified with ISO-9001:2000, ensuring top-quality standards. This versatile connector is available in multiple types including Right Angle Pin Header, Through Hole Pin Header, Dual Row Pin Header, as well as Vertical, SMT, Single Row, and Three Rows configurations to suit various application needs.

Constructed with high-grade insulator materials such as LCP, Nylon, PA6T, and PBT+30% Glass Fiber (UL94V-0), the LP-P071 ensures excellent durability and safety. It supports a current rating of 1.0AMP or 3.0AMP and offers a dielectric withstanding voltage of AC 500V, making it reliable for diverse electronic projects.

With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per piece, this product is ideal for large volume requirements. Packaging options include Reel, Tube, Tray, and Polybag, providing flexibility for your logistics preferences. The delivery time ranges from 7 to 10 days, supported by a robust supply ability of 1,000,000PCS.

Payment terms are flexible, accepting T/T, Western Union, and L/C, facilitating seamless transactions. Choose the LP-P071 PIN Header Connector for your next project and benefit from a high-quality, customizable, and reliable connection solution.
