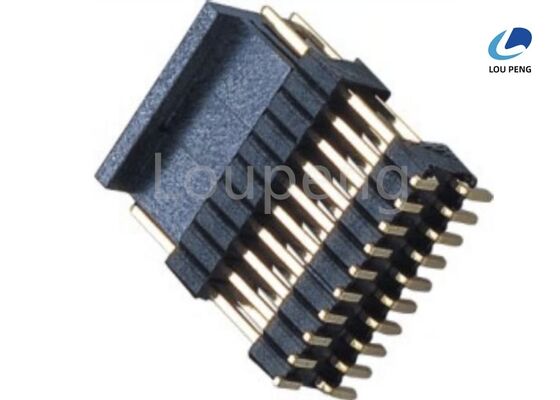

2 To 40 Pins Surface Mount Pin Header Including Dielectric Withstanding AC 500V Compatible with Various Electronic Systems and PCB Layouts

Product Description:

The Pin Header Connector is a versatile and essential component widely used in electronic assemblies for establishing reliable electrical connections between printed circuit boards (PCBs) and other devices. Designed with precision and durability in mind, this connector is ideal for various applications ranging from consumer electronics to industrial equipment. The product is available in multiple plastics height options, including 1.0mm, 1.5mm, 2.0mm, 2.5mm, and the industry-standard 2.54mm, allowing for flexible integration into different PCB designs and spatial requirements.

One of the standout features of this Pin Header Connector is its current rating, which comes in two variants: 1.0 AMP and 3.0 AMP. This range ensures that the connector can handle a variety of electrical loads depending on the specific needs of your project. Whether you require a low-power connection or something capable of supporting higher current demands, this product offers reliable performance and safety, minimizing the risk of overheating or electrical failure.

The plating options available for the Pin Header Connector include Gold, Tin, and Nickel, each providing distinct advantages tailored to different operating environments. Gold plating is renowned for its excellent conductivity and resistance to corrosion, making it suitable for high-reliability applications where signal integrity is paramount. Tin plating offers cost-effective protection against oxidation and is widely used in general-purpose electronic devices. Nickel plating provides robust mechanical strength and corrosion resistance, ideal for harsh or industrial environments.

The connector pins are fabricated from high-quality materials such as Phosphor Bronze and Brass. Phosphor Bronze pins are valued for their superior elasticity, excellent fatigue resistance, and good electrical conductivity, making them suitable for applications requiring frequent mating cycles. Brass pins, on the other hand, provide excellent mechanical strength and are also good conductors, offering a reliable connection in various electronic assemblies. Both materials contribute to the overall resilience and performance of the Pin Header Connector.

Durability is a critical factor in the design of this PCB Mount Pin Header. The connector has been rigorously tested to withstand up to 100 mating cycles without degradation in performance. This durability ensures that the connector maintains a secure and consistent electrical connection over time, even in applications where frequent plugging and unplugging occur. This characteristic makes the connector an excellent choice for prototyping, testing, and production environments where reliability is essential.

This Pin Header Connector is specifically designed for easy and secure PCB mounting, facilitating straightforward integration into your circuit board layout. Its standardized dimensions and multiple height options make it compatible with a wide range of PCB designs, enhancing versatility and reducing the time and effort required for assembly. Whether you are designing a compact consumer gadget or a complex industrial control system, this PCB Mount Pin Header offers the flexibility and dependability needed for successful implementation.

In summary, the Pin Header Connector combines high-quality materials, multiple plating choices, versatile plastics height options, and robust current ratings to deliver a product that meets the demanding requirements of modern electronic applications. Its durability, rated for 100 cycles, along with the choice between Phosphor Bronze and Brass pins, ensures long-lasting performance and reliable electrical connectivity. Whether used in prototype development or mass production, this connector stands out as a dependable component for any PCB-based project.

Features:

• Product Name: PIN Header Connector
• Durability: 100 cycles for long-lasting performance
• Number of pins: Available from 2 to 40 pins
• Dielectric Strength: Minimum 1000 V AC for reliable insulation
• Operating Temperature Range: -65°C to +125°C suitable for various environments
• Current Rating: Options of 1.0 AMP or 3.0 AMP to meet different electrical requirements
• Includes Female Pin Header Connector variants for versatile connectivity
• Straight Pin Header Connector design for easy integration
• Through Hole Pin Header mounting style for secure and stable connections

Technical Parameters:

Applications:

The LP-P070 Male Pin Header Connector, manufactured by LP in China, is an essential component widely used in various electronic applications due to its reliability and versatility. Certified with ISO-9001:2000, this product guarantees high quality and durability, making it suitable for both industrial and consumer electronics. With pin numbers ranging from 2 to 40 pins and multiple configuration types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, the LP-P070 Male Pin Header Connector can easily accommodate different design needs.

One of the most common application occasions for the LP-P070 is in circuit board connections where a Single Row Pin Connector is required. Its excellent insulation resistance of 5000 megaohms minimum and operation temperature range from -65°C to +125°C make it ideal for harsh environments and high-performance electronic devices. This makes it particularly useful in automotive electronics, telecommunications, industrial control systems, and consumer electronic gadgets where stable and reliable connections are critical.

The Male Pin Header Connector is often paired with a Female Pin Header Connector to establish secure and detachable connections between PCBs and various electronic modules. This versatility allows it to be used in prototyping, testing, and production stages of electronic manufacturing. The product’s packaging options, including reel, tube, tray, and polybag, cater to different assembly line requirements and facilitate easy handling during automated or manual processes.

Given its supply ability of 1,000,000 PCS and a competitive price of 0.0001 per unit with a minimum order quantity of 1000 PCS, the LP-P070 is highly suitable for large-scale manufacturing projects. Delivery time is efficiently managed within 7 to 10 days, and flexible payment terms such as T/T, Western Union, and L/C make procurement convenient for global customers.

In summary, the LP-P070 Male Pin Header Connector is an excellent choice for anyone seeking a high-quality, customizable, and cost-effective connector solution. Whether used as a Single Row Pin Connector in compact electronic devices or combined with a Female Pin Header Connector for modular systems, this product meets a wide range of application occasions and scenarios across multiple industries.

Customization:

Introducing the LP-P070 PIN Header Connector from LP, a high-quality product originating from China and certified with ISO-9001:2000. Designed to meet diverse application needs, our PIN Header Connectors come in various types including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows configurations.

We specialize in product customization services for both Male and Female Pin Header Connectors, ensuring compatibility and optimal performance. Our Single Row Pin Connector options provide reliable connectivity for your electronic devices.

Plating options available include Gold, Tin, and Nickel to suit different environmental and electrical requirements. The connectors feature a fire protection grade of UL94V-0 and can withstand processing temperatures up to 260℃ for 10 seconds, ensuring durability and safety.

Each order can be packaged according to your preference in Reel, Tube, Tray, or Polybag packaging. With a minimum order quantity of 1000PCS and a competitive price of 0.0001 per unit, LP guarantees excellent value.

We maintain a strong supply ability of up to 1,000,000PCS and promise a delivery time of 7 to 10 days. Payment terms are flexible, including T/T, Western Union, and L/C options to facilitate smooth transactions.

Choose LP’s PIN Header Connectors for your next project and benefit from our dedicated customization services tailored to Female Pin Header Connector, Male Pin Header Connector, and Single Row Pin Connector requirements.

Support and Services:

Our PIN Header Connector product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our technical team is available to assist with installation guidance, troubleshooting, and customization to meet your specific application needs. We provide detailed product datasheets, application notes, and compatibility information to help you make informed decisions.

In addition, we offer design consultation services to integrate the PIN Header Connector seamlessly into your projects, ensuring reliability and efficiency. For any issues related to product quality or defects, our support services include prompt replacement and warranty assistance.

We are committed to continuous improvement and welcome customer feedback to enhance our PIN Header Connector offerings. Whether you require assistance during the design phase or post-purchase support, our dedicated technical support team is here to help you achieve the best results.

Packing and Shipping:

Our PIN Header Connector is carefully packaged to ensure maximum protection during transit. Each connector is securely placed in anti-static bags to prevent any electrostatic discharge damage. These bags are then packed in sturdy, cushioned boxes to absorb shocks and prevent physical damage.

For bulk orders, the connectors are organized in trays or reels, depending on the product specifications, to maintain their integrity and facilitate easy handling.

We offer reliable shipping options worldwide, with tracking available for all shipments. Our logistics partners are selected to guarantee timely and safe delivery, ensuring that your PIN Header Connectors arrive in perfect condition.

For customized packaging or special shipping requests, please contact our customer service team. We are committed to providing flexible solutions to meet your specific needs.
