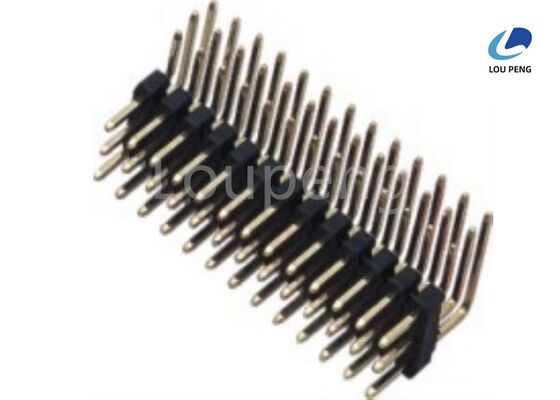

Gold Plating Surface Mount Pin Header Male Pin Connector Perfect for High Frequency Signal Transmission and PCB Mounting

Product Description:

The Straight Pin Header Connector is an essential component widely used in electronic assemblies for establishing reliable and durable electrical connections between printed circuit boards (PCBs) and other electronic components. Designed with precision and versatility in mind, this PCB Mount Pin Header is available in multiple pitch options including 0.8mm, 1.0mm, 1.27mm, 2.0mm, and 2.54mm, accommodating a broad range of design requirements and ensuring compatibility with various circuit board layouts. These pitch sizes allow designers to select the most appropriate spacing between pins to optimize signal integrity, minimize board space, and enhance overall device performance.

One of the standout features of this Straight Pin Header Connector is its wide range of pin numbers, from as few as 2 pins up to 40 pins. This flexibility enables its use in simple connections requiring minimal pins, as well as more complex configurations demanding numerous connections in a compact and organized manner. Whether you need to create a straightforward connection or a more intricate interface, this component provides the scalability necessary to meet diverse electronic design needs.

The Straight Pin Header Connector is engineered with high insulation resistance, boasting a minimum of 5000 megaohms. This exceptional insulation capability ensures minimal leakage current and enhances the reliability of the electrical connection, which is critical in sensitive electronic applications. High insulation resistance also contributes to the overall safety and durability of the device, preventing short circuits and maintaining signal clarity over time.

To ensure optimal performance and longevity, the pins of this PCB Mount Pin Header are plated with high-quality materials such as gold, tin, or nickel. Gold plating is renowned for its excellent conductivity and resistance to oxidation, making it ideal for high-frequency and critical signal applications. Tin plating offers cost-effective corrosion protection and is suitable for general-purpose use, while nickel plating provides robust mechanical strength and wear resistance. This variety in plating options allows users to select the most appropriate surface finish based on environmental conditions, electrical requirements, and budget considerations.

The Straight Pin Header Connector is also designed to withstand the rigors of modern manufacturing processes. It can endure processing temperatures up to 260℃ for 10 seconds, making it compatible with standard soldering techniques such as reflow soldering. This thermal resilience ensures that the connector maintains its structural integrity and electrical performance even after exposure to high-temperature soldering cycles, contributing to reliable and consistent assembly outcomes.

Overall, the Straight Pin Header Connector is a highly adaptable and dependable solution for PCB connections. Its multiple pitch options, extensive pin count range, superior insulation resistance, and versatile plating choices make it suitable for a wide spectrum of electronic applications, from consumer electronics to industrial equipment. The robust construction and thermal durability further enhance its appeal, ensuring that it meets the demanding standards of modern electronic manufacturing. Whether you are designing a new PCB or upgrading an existing system, this PCB Mount Pin Header offers the performance and reliability you need to achieve seamless and efficient electrical connections.

Features:

• Product Name: PIN Header Connector
• Type: Single Row Pin Connector
• Mounting Style: PCB Mount Pin Header
• Compatible Connector: Female Pin Header Connector
• Dielectric Withstanding Voltage: AC 500V
• Processing Temperature: 260℃ for 10 Seconds
• Current Rating Options: 1.0AMP or 3.0AMP
• Plating Materials: Gold, Tin, Nickel
• Maximum Contact Resistance: 20M Ohms

Technical Parameters:

Applications:

The Loupeng PIN Header Connector, model number LP-P080, is a versatile and reliable electronic component designed to meet the needs of various applications and scenarios. Manufactured in China and certified under ISO-9001:2000, this connector ensures high-quality standards and consistent performance. Its robust construction features a contact resistance of 20M Ohms max and a dielectric strength of 1000 V AC minimum, making it ideal for use in demanding electronic environments where stable and secure connections are essential.

One of the primary application occasions for the Loupeng PIN Header Connector is in PCB assembly and electronic device manufacturing. The connector is available in multiple configurations, including Vertical, Right Angle, SMT, Single Row, Double Row, and Three Rows, allowing engineers and designers to select the perfect fit for their specific circuit board layouts. Its through hole pin header design ensures strong mechanical stability and reliable electrical contact, which is crucial for applications requiring long-term durability.

The Single Row Pin Connector variant of the LP-P080 model is particularly favored in compact electronic devices where space-saving and efficient connectivity are paramount. This type of connector is widely used in consumer electronics, industrial automation, communication equipment, and computer hardware, where precise and secure connections to the PCB are necessary. The PCB Mount Pin Header format facilitates easy and secure mounting on printed circuit boards, enhancing manufacturing efficiency and product reliability.

In addition to its technical advantages, the Loupeng PIN Header Connector offers practical benefits in terms of packaging and supply. It is available in various packaging options such as Reel, Tube, Tray, and Polybag, catering to different production and inventory needs. With a supply ability of 1,000,000 pieces and a minimum order quantity of 1000PCS, Loupeng can efficiently support large-scale manufacturing projects. The delivery time of 7 to 10 days and flexible payment terms including T/T and L/C further streamline the procurement process.

Moreover, the connector’s fire protection grade of UL94V-0 and its ability to withstand a processing temperature of 260℃ for 10 seconds make it suitable for harsh environments and high-temperature soldering processes. This makes the Loupeng PIN Header Connector an excellent choice for use in automotive electronics, telecommunications infrastructure, medical devices, and other critical applications where safety and reliability are non-negotiable.

In summary, the Loupeng LP-P080 PIN Header Connector is a high-quality, certified product designed for a wide range of electronic applications. Its through hole pin header structure, single row pin connector options, and PCB mount pin header compatibility make it an indispensable component for engineers seeking dependable connectivity solutions. Whether used in small-scale prototypes or mass production, this connector delivers consistent performance, safety, and ease of use, making it a preferred choice across various industries.

Customization:

Loupeng offers customized Male Pin Header Connector solutions, model number LP-P080, designed to meet your specific requirements. Our PCB Mount Pin Header is manufactured in China under the strict quality control of ISO-9001:2000 certification, ensuring reliable performance and durability.

We provide a minimum order quantity of 1000PCS with a competitive price of 0.0001 per unit. Packaging options include Reel, Tube, Tray, and Polybag to suit your logistics needs. Our Straight Pin Header Connector features excellent retention force of 700g minimum, with contact resistance not exceeding 20 milliohms, made from high-quality copper alloys.

The connectors are plated with your choice of Gold, Tin, or Nickel to ensure optimal conductivity and corrosion resistance. They also offer a dielectric strength of at least 1000 V AC, guaranteeing safety and performance in various applications.

With a supply ability of 1,000,000 PCS and a delivery time of 7 to 10 days, Loupeng ensures timely fulfillment of your orders. Payment terms include T/T and L/C for your convenience. Customize your Male Pin Header Connector with Loupeng for dependable PCB Mount Pin Header and Straight Pin Header Connector solutions tailored to your needs.

Support and Services:

Our PIN Header Connector product is supported by a comprehensive technical support and services team dedicated to ensuring optimal performance and customer satisfaction. We provide detailed product documentation, including datasheets, installation guides, and application notes to assist with proper usage and integration.

Our technical support specialists are available to help with product selection, troubleshooting, and customization to meet specific application requirements. We offer design assistance to optimize connector configurations and ensure compatibility with your systems.

Furthermore, we provide training sessions and webinars to educate customers on best practices and new technologies related to PIN Header Connectors. For any issues encountered during installation or operation, our support team can guide you through diagnostic procedures and recommend solutions.

We are committed to continuous improvement and welcome customer feedback to enhance our products and services. Our goal is to deliver reliable, high-quality connectors backed by responsive and knowledgeable technical support.

Packing and Shipping:

Our PIN Header Connectors are carefully packaged to ensure maximum protection during transit. Each connector is placed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely packed in sturdy cartons with adequate cushioning materials to avoid any physical damage.

For shipping, we offer multiple options including standard, expedited, and freight services to meet your delivery needs. All shipments are tracked and insured to guarantee safe and timely delivery. We also comply with international shipping regulations to ensure smooth customs clearance.

Whether you order in small quantities or bulk, we ensure that your PIN Header Connectors arrive in perfect condition and on schedule, ready for immediate use in your electronic projects.
